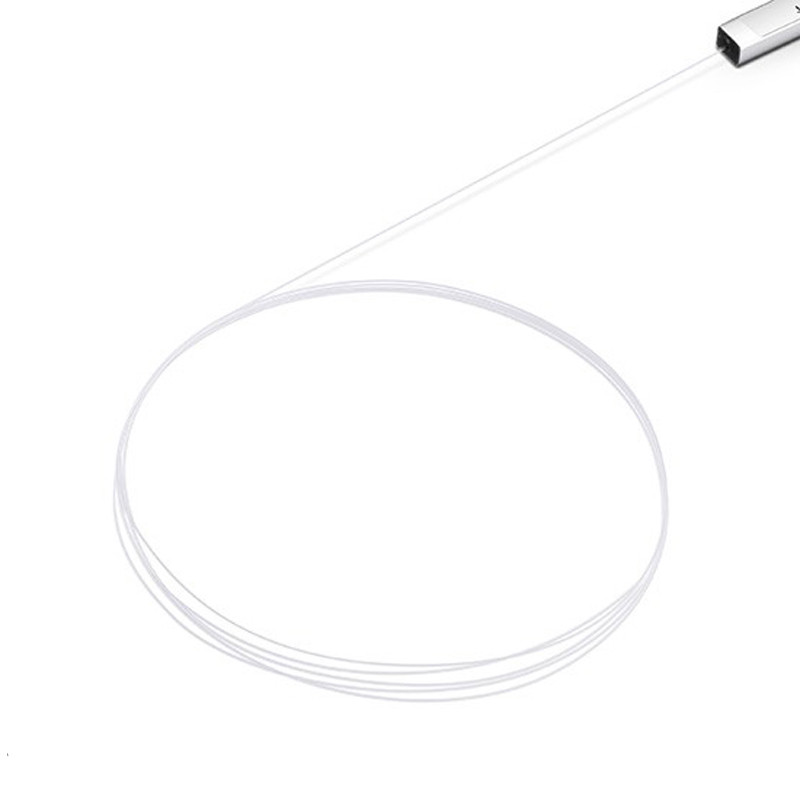

1 x2 Fiber Optic Splitter without connectors, Steel Tube package, 0.9mm cable

Place of Origin : China

Brand Name : CY

Certification : ISO9001:2008, SGS, ROSH

MOQ : 20

Packaging Details : Plastic Bag

Delivery Time : in 3-10 days

Payment Terms : T/T, Western union

Supply Ability : 20000pcs per month

Configuration Type : 1x2 1x4 1x8 1x32 1x64

Connector Type : None

Fiber Length : 1.0m

Package Style : Steel Tube, Bare Fiber

Fiber Type : Singlemode G.657A1

Fiber Diameter : 250μm

Contact Now

1x2 Fiber Optic Coupler without connectors, Steel Tube package, 0.9mm cable

Optical Splitter/Coupler is an optical device that combines or splits power from optical fibers.
It divides light from a single fiber into two or more fiber channels.

Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available

Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting

Specifications

Parameters	1×N Bare Fiber PLC Splitters
Operating Wavelength (nm)	1260~1650
Port Configuration	1×2	1×4	1×8	1×16	1×32	1×64
Max Insertion Loss (dB) (P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/14.7	16.5/16.9	20.5/21.0
Max Loss Uniformity (dB)	0.6	0.7	0.8	1.2	1.5	2.0
Max PDL (dB)	0.2			0.25		0.35
Min Return Loss (dB)	55
Min Directivity (dB)	55
Max Wavelength Dependent Loss (dB)	0.5			0.8		1.0
Max Temperature Stability (dB)	0.5
Operating Temperature (℃)	-5~75
Storage Temperature (℃)	-40~85
Device Dimension L×W×H (mm)	40×4×4			50x4x4	50x7x4	60x12x4
